Termination Bar 2.74cm x 3.05m drilled


Termination Bar 2.74cm x 3.05m drilled

35.76

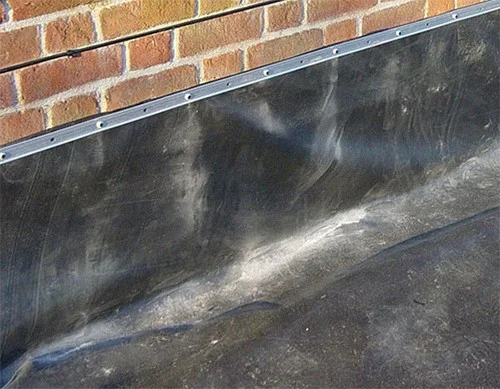

Firestone Termination Bar is corrosion resistant aluminium and is intended for fastening, attaching and sealing approved Firestone EPDM membrane terminations onto hard flat sound surfaces as indicated in the current Firestone Specialty Products specifications and details within the Firestone Installation Guidelines.

Specifications

  • Material: 3003-H14, 3105-H14 or 6063-T5 or T6 Aluminium

  • Length: 3.05m Width: 27.4mm

  • Thickness: 2.7mm Extruded clean round edge

  • Slotted holes

  • Hole Spacing: 100mm centres

  • Maximum permissible fastener spacing: Every third hole

https://youtu.be/fdnIeJ2ZL60

http://firestonebpco.com/content/uploads/import/assets/20695/1205%20Termination%20Bar.pdf
